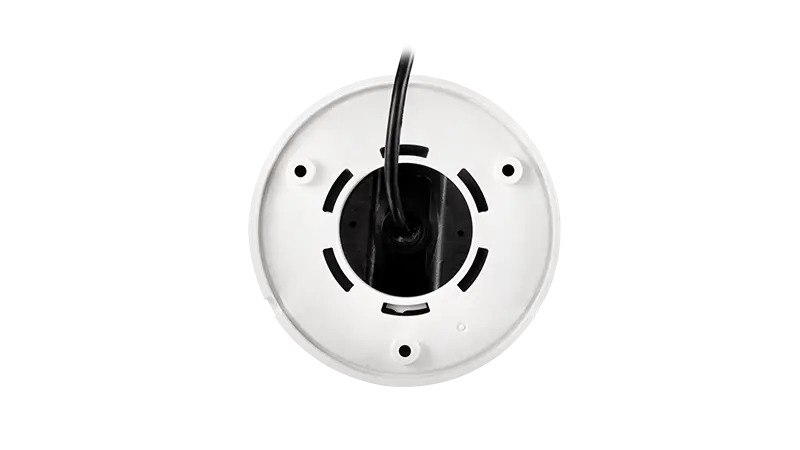

DC-D2214R - תמונה 2

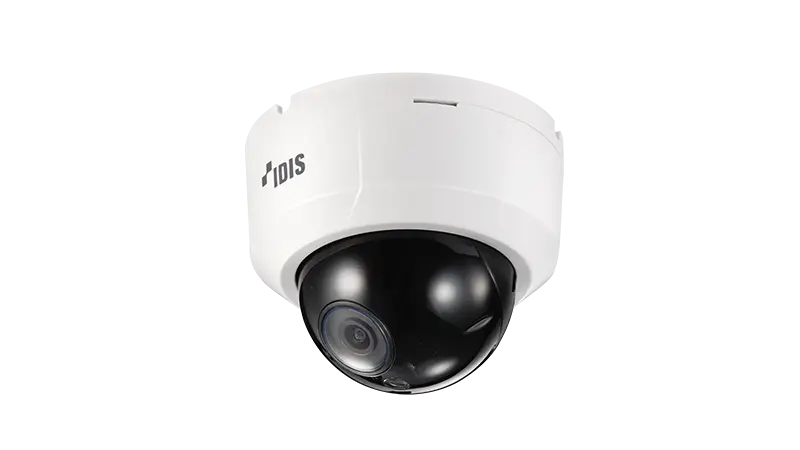

DC-D2214R - תמונה 3

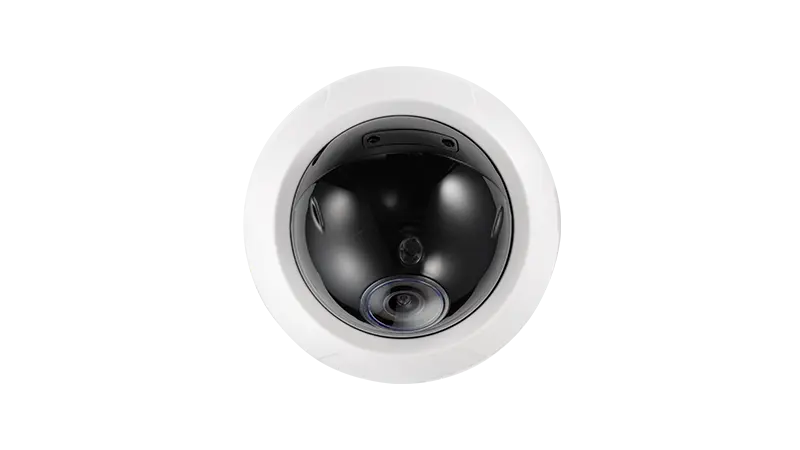

DC-D2214R - תמונה 4

DC-D2214R

2MP IR Dome Camera

תואם NDAA
  • IDIS Lite Series
  • 1/2.8 SONY IMX 307 Starvis CMOS Sensor
  • 2MP Resolution
  • Triple Streaming
  • Fixed lens: 2.8mm (F=1.6)
  • Non-reflection Structure
  • Heat-radiation Structure
  • Bubble color: IR Pass Black
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/2.8" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Length2.8mm
ApertureF1.6
Iris ControlFixed Iris
Angular Field of View106.9º(H), 56.9º(V), 127.9º(D)
Min. IlluminationColor: 0.001 Lux@F1.6 B/W: 0 Lux (IR LED ON)
Dynamic RangeTrue WDR
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/100,000), Anti-Flicker, Slow Shutter (1 ~ 30)
Day and NightYes(ICR)
IR Distance (LEDs)25 m / 82ft (4 ea)
Image SettingWhite Balance Mode, Sharpness, Contrast, Colors, Brightness
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
De-fogYes
Privacy Masking8 Zones
Intelligent VideoMotion Detection, Tampering Alarm
Pan/Tilt/Rotate
רשת
Video CompressionH.265 (MP), H.264, M-JPEG
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionG.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolAPI, ONVIF Profile S/T, IDIS Lite
Max. Frame Rate30ips : 1920 x 1080
Supported Resolution1920 x 1080, 1280 x 720,1024 x 576, 768 x 432, 704 x 392, 640 x 360, 384 x 216
Multi-video StreamingSimultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming)
Network ProtocolsTCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf
SecurityMulti User Authority, IP Filtering, HTTPS
EthernetRJ45 (10/100BASE-T)
Edge Storagemicro SDHC/SDXC
אזעקה ואירועים
Trigger EventMotion Detection, Tamerping
Event NotificationEmail, FTP
סביבתי
Outdoor ReadyIP67
Operating Temperature-10°C ~ +50°C(+14°F ~ +122°F)
Operating Humidity0% ~ 95%
חשמל
Power Source12VDC, PoE (IEEE 802.3af Class 2
Power Consumption4.6W
ApprovalKC, CE, FCC
מכני
DimensionsØ111.90 x 88.21(H)mm(Ø4.40” x 3.47”)
Weight0.325kg (0.7165 lb)

אביזרים תואמים

סביבה

Wall Mount

Wall mount bracket and matching adapter combination for vertical exterior or interior walls.

Wall MountDA-WM2500
סביבה

Special / Custom

Adapter combinations for special and custom installation environments.

Junction BoxDA-JB2500

קבצים להורדה

[גיליון נתונים] DC-D2214R Datasheet הורדה
