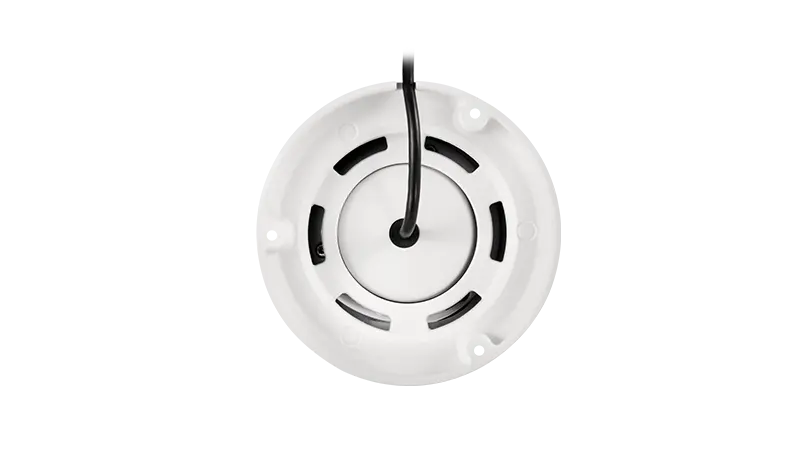

DC-D2511WER - תמונה 2

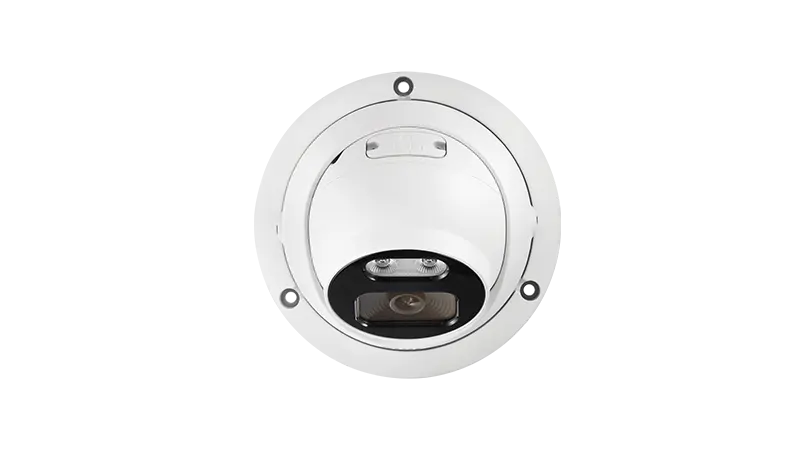

DC-D2511WER - תמונה 3

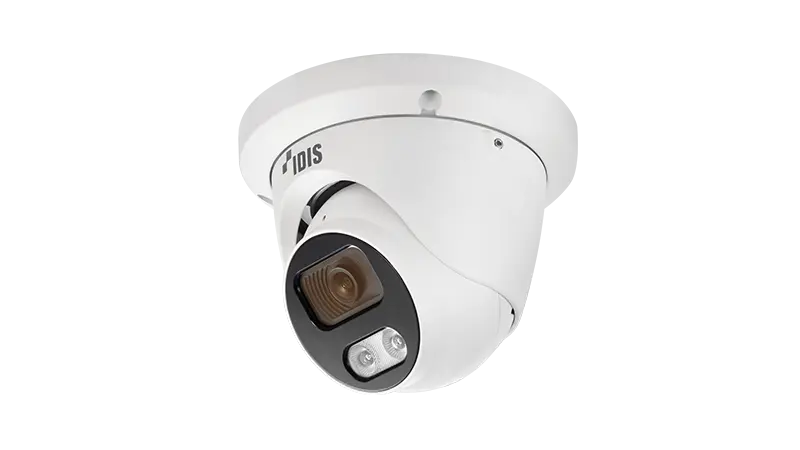

DC-D2511WER - תמונה 4

DC-D2511WER

5MP IR Dome Camera

תואם NDAA
  • IDIS Lite Series
  • 1/2.8 SONY IMX 335 Starvis CMOS Sensor
  • 5MP Resolution
  • Triple Streaming
  • Fixed lens : 2.8mm (F=1.6)
  • Non-reflection Structure
  • Heat-radiation Structure
  • 2 High Power LED
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/2.8" CMOS
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Length2.8mm
ApertureF1.6
Iris ControlFixed Iris
Angular Field of View106.9º(H), 56.9º(V), 127.9º(D)
Min. IlluminationColor: 0.001 Lux@F1.6B/W: 0 Lux (IR LED ON)
Dynamic RangeTrue WDR
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/100,000), Anti-Flicker, SlowShutter (1 ~ 30)
Day and NightYes(ICR)
IR Distance (LEDs)20m / 65.6ft (2 ea)
Image SettingWhite Balance Mode, Sharpness, Contrast, Colors, Brightness
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
De-fogYes
Privacy Masking8 Zones
Intelligent VideoMotion Detection, Tampering Alarm
Pan/Tilt/Rotate
רשת
Video CompressionH.265 (MP), H.264, M-JPEG
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionG.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolAPI, ONVIF Profile S/T, IDIS Lite
Max. Frame Rate30ips : 2592 x 1944
Supported Resolution2592 x 1944, 2560 x 1920, 2048 x 1536, 1920 x 1440, 1600 x 1200, 1280 x 960, 640 x 480, 480 x 360
Multi-video StreamingSimultaneously H.265 and MJPEG (Multi Streaming) orSimultaneously H.264 and MJPEG (Multi Streaming)
Network ProtocolsTCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP,ARP, Zeroconf
SecurityMulti User Authority, IP Filtering, HTTPS
EthernetRJ45 (10/100BASE-T)
Edge Storagemicro SDHC/SDXC
אזעקה ואירועים
Trigger EventMotion Detection, Tamerping
Event NotificationEmail, FTP
סביבתי
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-10°C ~ +50°C(+14°F ~ +122°F)
Operating Humidity0% ~ 95%
חשמל
Power Source12VDC, PoE (IEEE 802.3af Class 2)
Power Consumption3.82W
ApprovalKC, CE, FCC
מכני
DimensionsØ125.0 x 90.2(H)mm(Ø4.92”x3.55”)
Weight0.504kg (1.111 lb)

אביזרים תואמים

סביבה

Wall Mount

Wall mount bracket and matching adapter combination for vertical exterior or interior walls.

Wall MountDA-WM2500
סביבה

Special / Custom

Adapter combinations for special and custom installation environments.

Junction BoxDA-JB2500

קבצים להורדה

[גיליון נתונים] DC-D2511WER Datasheet הורדה
