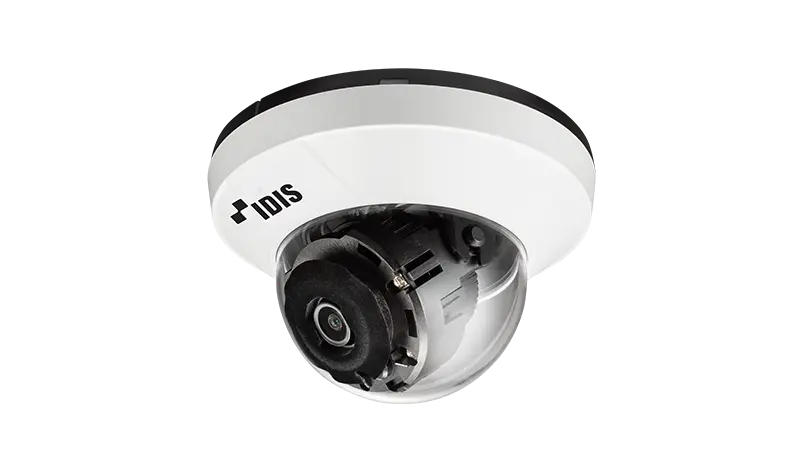

DC-D4217RX 2.8mm - תמונה 2

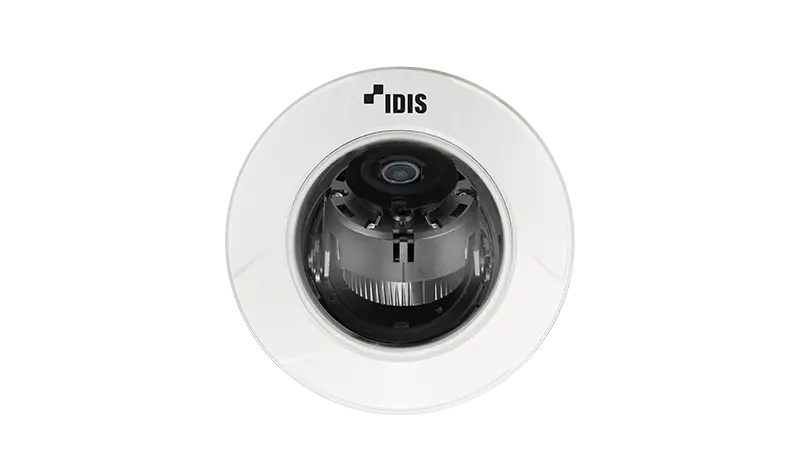

DC-D4217RX 2.8mm - תמונה 3

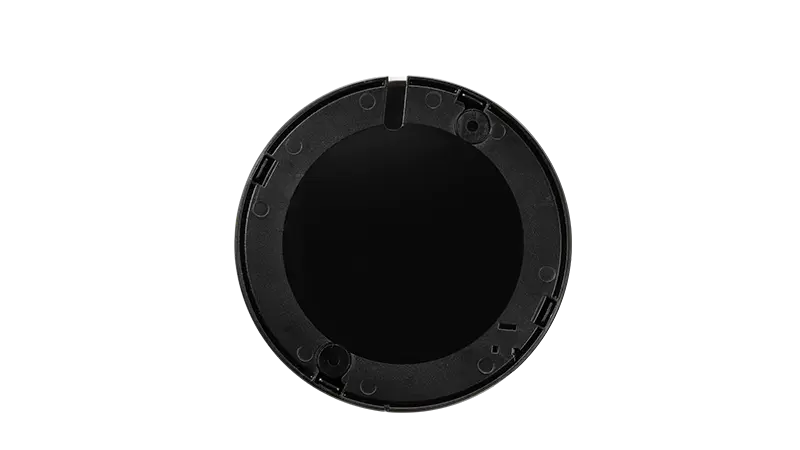

DC-D4217RX 2.8mm - תמונה 4

DC-D4217RX 2.8mm

Full HD IR Dome Camera

תואם NDAA
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=4.0mm)
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 20 m / 65.6 ft)
  • Easy installation with DirectIP NVR
  • 3-axis mechanical design for installation
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/2.8" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Length4.0mm
ApertureF1.6
Iris ControlFixed Iris
Angular Field of View87.4º(H), 46.9º(V), 103.5º(D) (f=4.0mm)
Min. IlluminationCOLOR : 0.1 lux @ F2.0
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)20m / 65.6 ft (2ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
De-fogYes
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Pan/Tilt/Rotate
Pan Range-170° ~ 170°
Tilt Range-5° ~ 67.5°
Rotate Range-109° ~ 109°
רשת
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
IP Camera ProtocolDirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate30ips : 1920 x 1080 (WDR)
Supported Resolution1920x1080, 1280x720, 640x360, 352x240
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecurityDigest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
אזעקה ואירועים
Trigger EventMotion Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
סביבתי
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
חשמל
Power SourcePoE IEEE 802.3af (Class 2)
Power ConsumptionPoE, IEEE 802.3af (Class 2), 3.8W
ApprovalFCC, CE, KC
מכני
DimensionsØ130 x 81.4mm(Ø5.2” x 3.2”)
Weight0.242Kg(0.53lb)

אביזרים תואמים

סביבה

Wall Mount

Wall mount bracket and matching adapter combination for vertical exterior or interior walls.

Wall mountDA-WM4200
Wall mountDA-WM4300

קבצים להורדה

[גיליון נתונים] DC-D4217RX 2.8mm Datasheet הורדה
