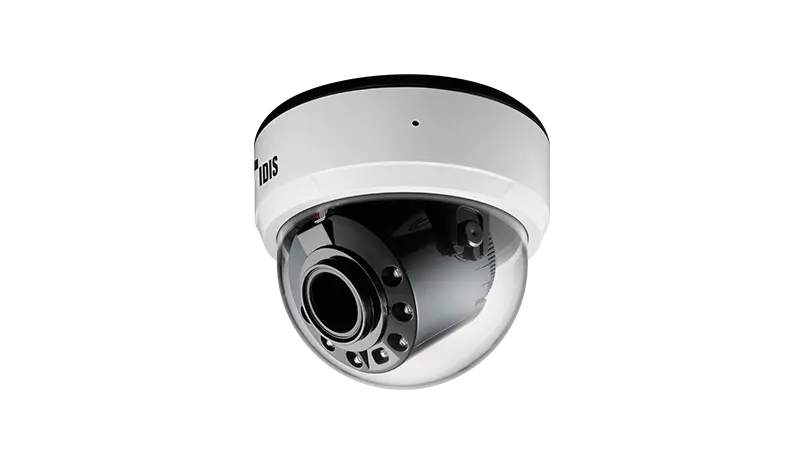

DC-D4536RX - תמונה 2

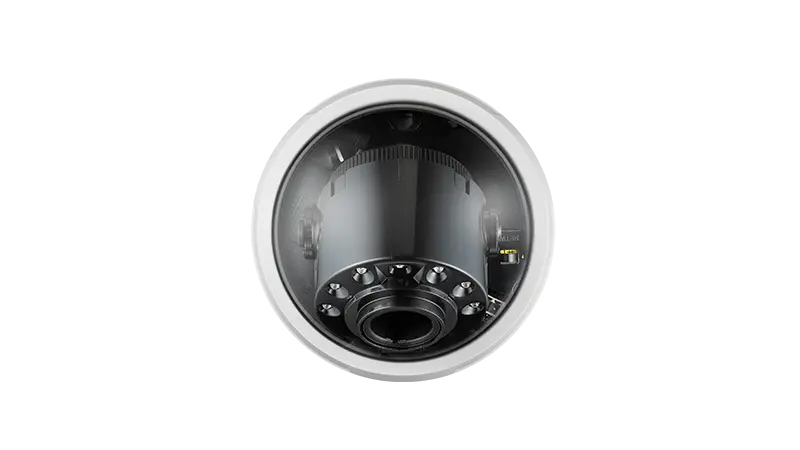

DC-D4536RX - תמונה 3
DC-D4536RX - תמונה 4

DC-D4536RX

5MP IR Dome Camera

תואם NDAA
  • Easy installation with DirectIP NVR
  • 5MP (2592x1944) resolution
  • Motorized Vari-focal lens (f=3.0 - 13.5mm)
  • micro SD/SDHC/SDXC, Smart Failover
  • Two-way audio
  • Alarm in / out
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/2.8" CMOS
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Length3.0 ~ 13.5mm
ApertureF1.4 ~ 3.2
Iris ControlDC Iris
Angular Field of View[4:3 mode]
Wide : 91º(H) 66º(V) 120º(D)
Tele : 31º(H) 23º(V) 38º(D)

[16:9 mode]
Wide : 91º(H) 49º(V) 107º(D)
Tele : 31º(H) 17º(V) 35º(D)
Min. IlluminationCOLOR : 0.15 lux @ F1.4
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)30m / 98.4 ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationBLC
Mirroring / PivotHorizontal / Vertical / Pivot
De-fogYes
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Pan/Tilt/Rotate
Pan Range-175° ~ 175°
Tilt Range0° ~ 67°
Rotate Range-177° ~ 177°
רשת
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate4:3 mode : 30ips : 2592 x 1944(WDR)
16:9 mode : 30ips : 2592 x 1456(WDR)
Supported Resolution4:3 : 2592x1944, 1920x1440, 1280x960, 640x480
16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecurityDigest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
אזעקה ואירועים
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1(Built In MIC)+1 / 1
Alarm In / Out1 / 1
סביבתי
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
חשמל
Power Source12VDC, PoE, IEEE 802.3af(Class 3)
Power Consumption12V=, 1A, 12W
PoE, IEEE 802.3af(Class 3), 9.5W
ApprovalFCC, CE, KC
מכני
DimensionsØ122.4 x 103.4mm(Ø4.82” x 4.07”)
Weight0.4kg (0.88lb)

אביזרים תואמים

סביבה

Wall Mount

Wall mount bracket and matching adapter combination for vertical exterior or interior walls.

MOUNT ADAPTERDA-MA4300
+
WALL MOUNTDA-WM2050
Wall mountDA-WM4300
סביבה

Ceiling Mount

Ceiling mount and pendant adapter combination for overhead installation.

MOUNT ADAPTERDA-MA4300
+
CEILING MOUNTDA-CM2050
סביבה

Corner Mount

Corner mount adapter combination for structure edges and corners.

MOUNT ADAPTERDA-MA4300
+
WALL MOUNTDA-WM2050
+
Corner MountDA-RM2000
סביבה

Pole Mount

Pole mount adapter combination for vertical cylindrical or square poles.

MOUNT ADAPTERDA-MA4300
+
WALL MOUNTDA-WM2050
+
Pole MountDA-LM2000
סביבה

Special / Custom

Adapter combinations for special and custom installation environments.

Flush MountDA-FM1500
Indoor Dome Flush(In-ceiling) MountDA-FM1600
