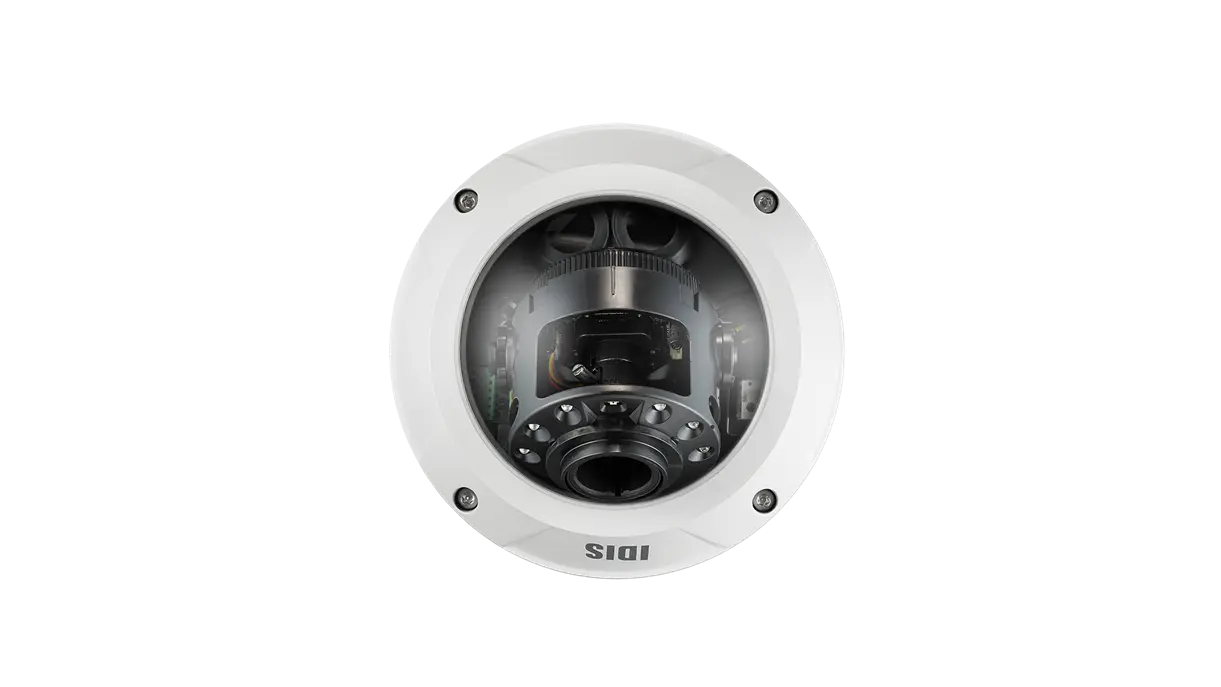

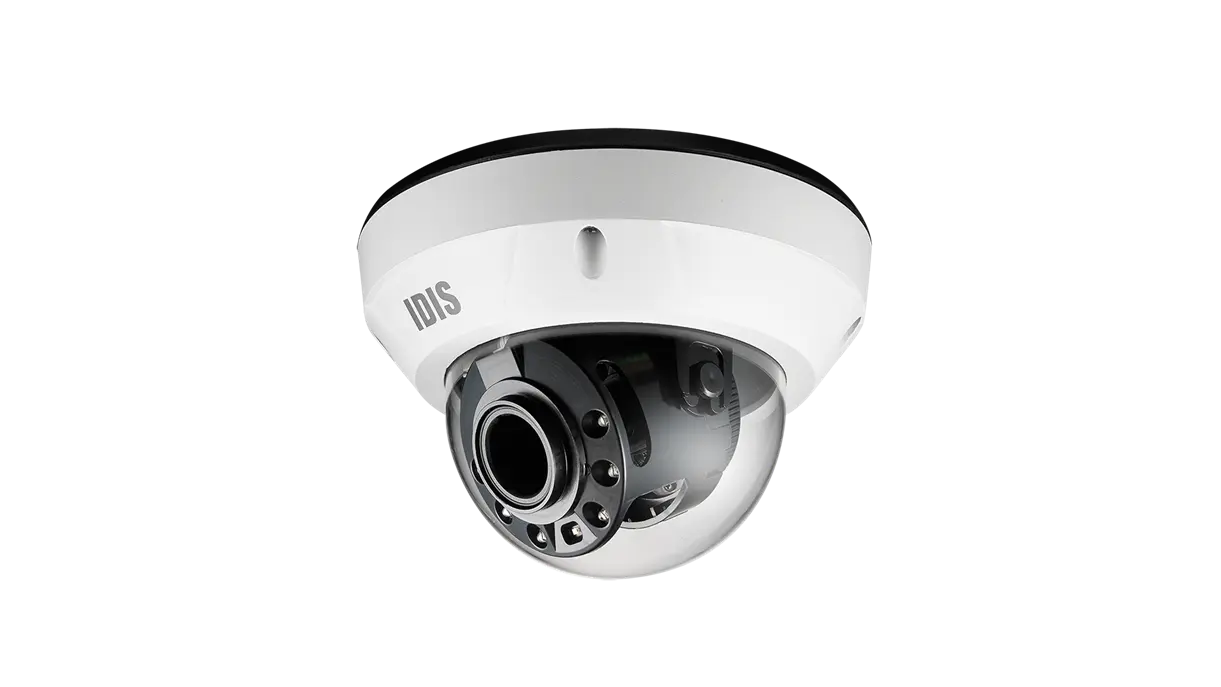

DC-D4831HRX
8MP Vandal-Resistant IR Dome Camera
תואם NDAA- Easy installation with DirectIP NVR
- 8MP (3840x2160) resolution
- Motorized Vari-focal lens (f=2.7 - 13.5mm)
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
מפרט טכני
| וידאו | |
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.8 ~ F3.32 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 110.6º(H) 57.3º(V) 134.1º(D) Tele : 32.6º(H) 18.3º(V) 37.4(D) |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| רשת | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| אזעקה ואירועים | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| סביבתי | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.2A, 14.4W PoE, IEEE 802.3af(Class 3), 12.4W |
| Approval | FCC, CE, UL, KC |
| מכני | |
| Dimensions | Ø155 x 104.4mm(Ø6.1” x 4.11”) |
| Weight | 1.02kg (2.25lb) |
אביזרים תואמים
סביבה
Wall Mount
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
JUNCTION BOXDA-JB2200
MOUNT ADAPTERDA-MA2100
WALL MOUNTDA-WM2050
סביבה
Ceiling Mount
Ceiling mount and pendant adapter combination for overhead installation.
JUNCTION BOXDA-JB2200
MOUNT ADAPTERDA-MA2100
CEILING MOUNTDA-CM2050
סביבה
Corner Mount
Corner mount adapter combination for structure edges and corners.
MOUNT ADAPTERDA-MA2100
WALL MOUNTDA-WM2050
Corner MountDA-RM2000
סביבה
Pole Mount
Pole mount adapter combination for vertical cylindrical or square poles.
MOUNT ADAPTERDA-MA2100
WALL MOUNTDA-WM2050
Pole MountDA-LM2000
סביבה
Special / Custom
Adapter combinations for special and custom installation environments.
Flush MountDA-FM1500
