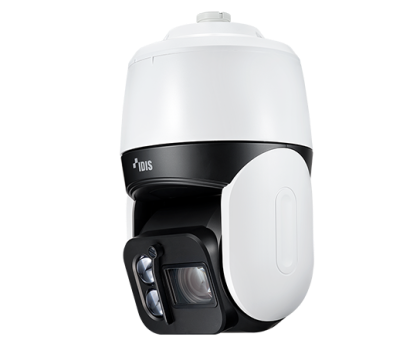

DC-S6481HRA - תמונה 2
DC-S6481HRA - תמונה 3
DC-S6481HRA - תמונה 4

DC-S6481HRA

H.265 4MP AI PTZ Camera (LightMaster NIR)

תואם NDAA
  • Easy installation with DirectIP NVR
  • 4MP (2688 x 1520) resolution
  • AF optical zoom lens (f=6.91 ~ 248.76mm)
  • Built-in 400m Long range IR Illuminator
  • IDIS Deep-Learning Analytics (IDLA)
  • AI Auto Tracking Supports
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/1.8" CMOS
Max. Resolution2688 X 1520
Scanning ModeProgressive Scan
Lens TypeAF Zoom Lens
Focal Length6.91 ~ 248.76mm
ApertureF1.36~F4.6
Iris ControlP-Iris
Angular Field of ViewWide : 61.8°(H), 36.3°(V), 70.3°(D)
Tele : 2.4°(H), 1.3°(V), 2.7°(D)
Min. IlluminationColor : 0.06 lux @ F1.35
B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and NightYes (ICR)
IR Distance (LEDs)400 m / 1,312.3ft (2ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Mirroring / PivotHorizontal / Vertical
Image StabilizerYes (EIS)
De-fogYes
Privacy Masking8 Zones
Intelligent VideoObject Metadata: Human, Vehicle, Face
IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Basic: Video Motion Detection, Active Tampering Alarm
Auto TrackingYes
Video Out1 Terminal Block
Pan/Tilt/Rotate
Pan Range360° (Endless)
Pan Speed0.02~240°/sec (preset 240°/sec)
Tilt Range200° (-10~190°)
Tilt Speed0.02~240°/sec (preset 240°/sec)
Preset256ea
רשת
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecYes
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionOpus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate30ips : 2688 x 1520(WDR)
Supported Resolution2688 x 1520, 1920x1080, 1280x720, 640x360
Multi-video StreamingQuadruple Streaming
Network ProtocolsDirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
SecurityDigest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
אזעקה ואירועים
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Event NotificationRemote S/W, Email (with Image)
Audio AlarmYes
Audio In / Out1 / 1
Alarm In / Out8 / 2
סביבתי
Vandal Proof CasingIK10
Outdoor ReadyIP66, Heater
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
חשמל
Power Source24VAC, PoE IEEE 802.3bt (Class 8)
Power ConsumptionHEATER/IR OFF: 24V~, 1.5A, 27.1W, PoE, IEEE 802.3bt(Class 8), 26.4W
HEATER/IR ON: 24V~, 2.8A, 52.9W, PoE, IEEE 802.3bt(Class 8), 54.2W
ApprovalFCC, CE, KC
מכני
DimensionsØ242mm x 401.8mm (Ø9.52" x 15.82")
Weight7.2kg (15.87 lbs)

אביזרים תואמים

סביבה

Wall Mount

Wall mount bracket and matching adapter combination for vertical exterior or interior walls.

Wall MountDA-WM1400
סביבה

Ceiling Mount

Ceiling mount and pendant adapter combination for overhead installation.

Ceiling MountDA-CM1300
Ceiling MountDA-CM1500
סביבה

Corner Mount

Corner mount adapter combination for structure edges and corners.

Wall MountDA-WM1400
+
Corner MountDA-RM1100
סביבה

Pole Mount

Pole mount adapter combination for vertical cylindrical or square poles.

Wall MountDA-WM1400
+
Pole MountDA-LM1100
סביבה

Special / Custom

Adapter combinations for special and custom installation environments.

Single Port High-PoE InjectorDA-PI PoE400

קבצים להורדה

[גיליון נתונים] DC-S6481HRA Datasheet הורדה
