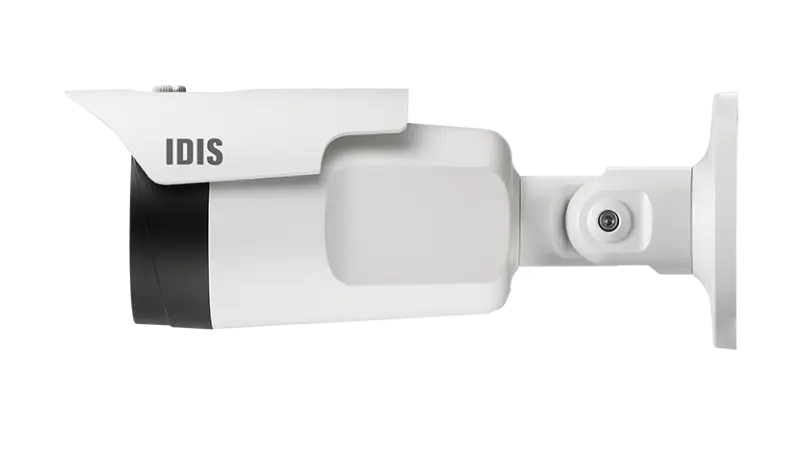

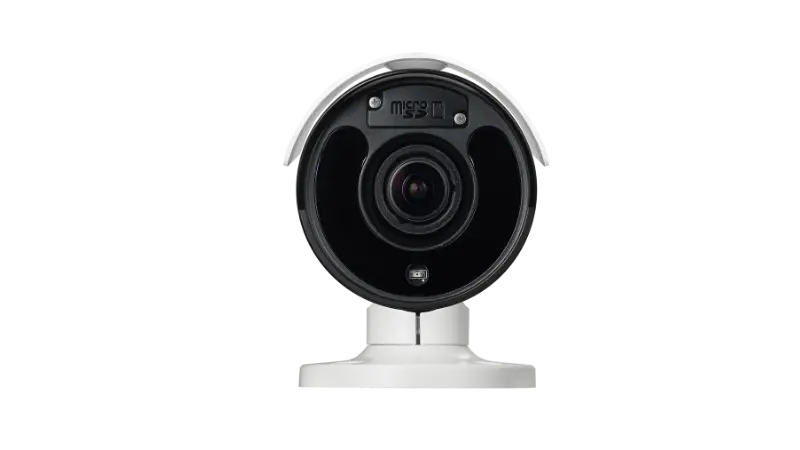

DC-T4236HRX
Full HD IR Bullet Camera with Heater
תואם NDAA- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Motorized Vari-focal lens (f=2.8 - 12mm)
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
מפרט טכני
| וידאו | |
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 98º(H) 51º(V) 116º(D) Tele : 33º(H) 19º(V) 38(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30 m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| רשת | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| אזעקה ואירועים | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| סביבתי | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 0.78A, 9.3W PoE, IEEE 802.3af(Class 3), 8.5W |
| Approval | FCC, CE, KC |
| מכני | |
| Dimensions | Φ 77mm X 244.1mm (Φ 3" x 9.61") |
| Weight | 0.84kg (1.85 lb) |
אביזרים תואמים
סביבה
Wall Mount
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Junction BoxDA-JB4150
Junction BoxDA-JB2400
סביבה
Ceiling Mount
Ceiling mount and pendant adapter combination for overhead installation.
Junction BoxDA-JB4150
Junction BoxDA-JB2400
סביבה
Corner Mount
Corner mount adapter combination for structure edges and corners.
Junction BoxDA-JB2400
Corner MountDA-RM2000
Junction BoxDA-JB4150
Corner MountDA-RM2000
סביבה
Pole Mount
Pole mount adapter combination for vertical cylindrical or square poles.
Junction BoxDA-JB4150
Pole MountDA-LM2000
Junction BoxDA-JB2400
Pole MountDA-LM2000
קבצים להורדה
[גיליון נתונים] DC-T4236HRX Datasheet
הורדה
