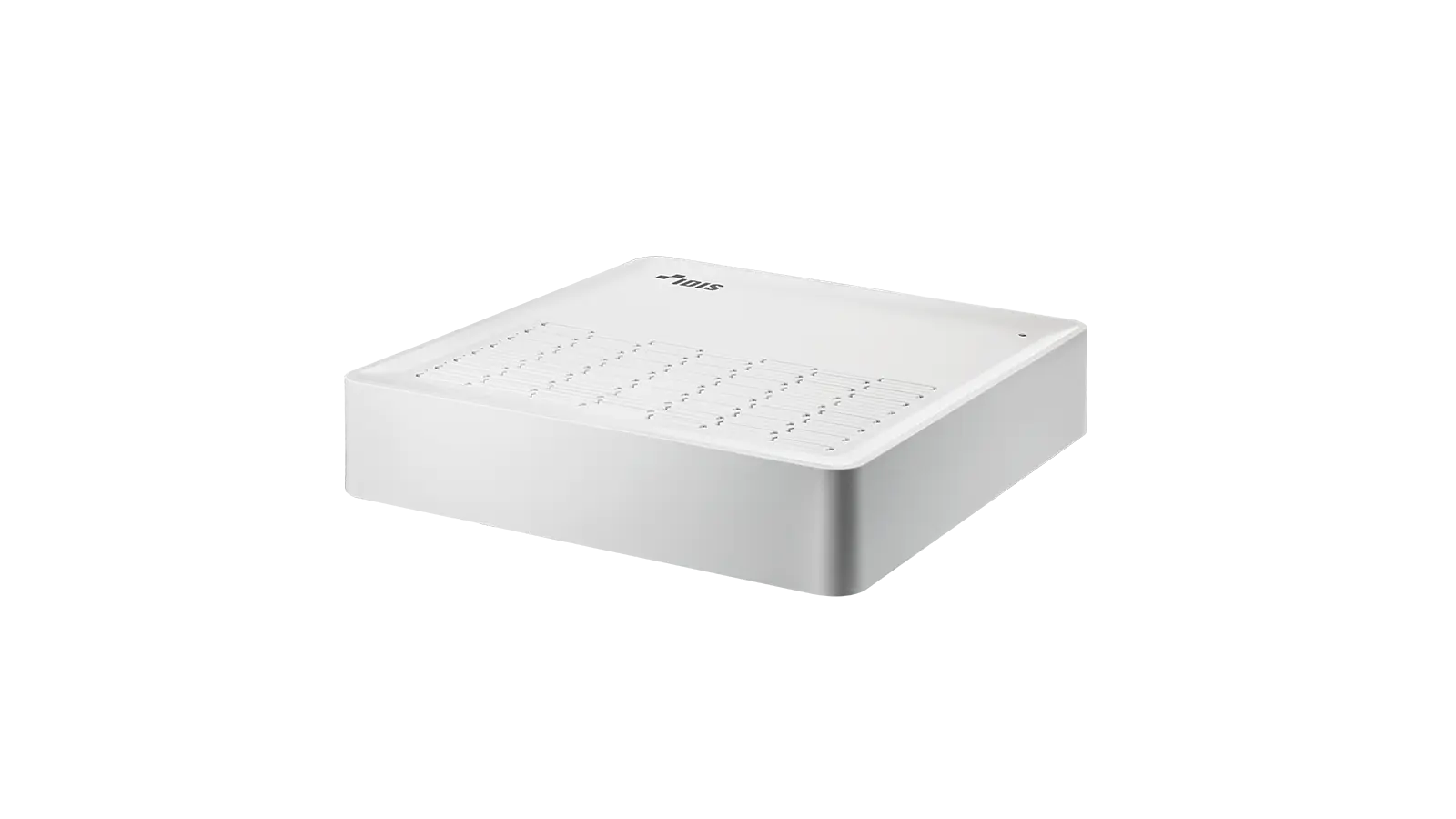

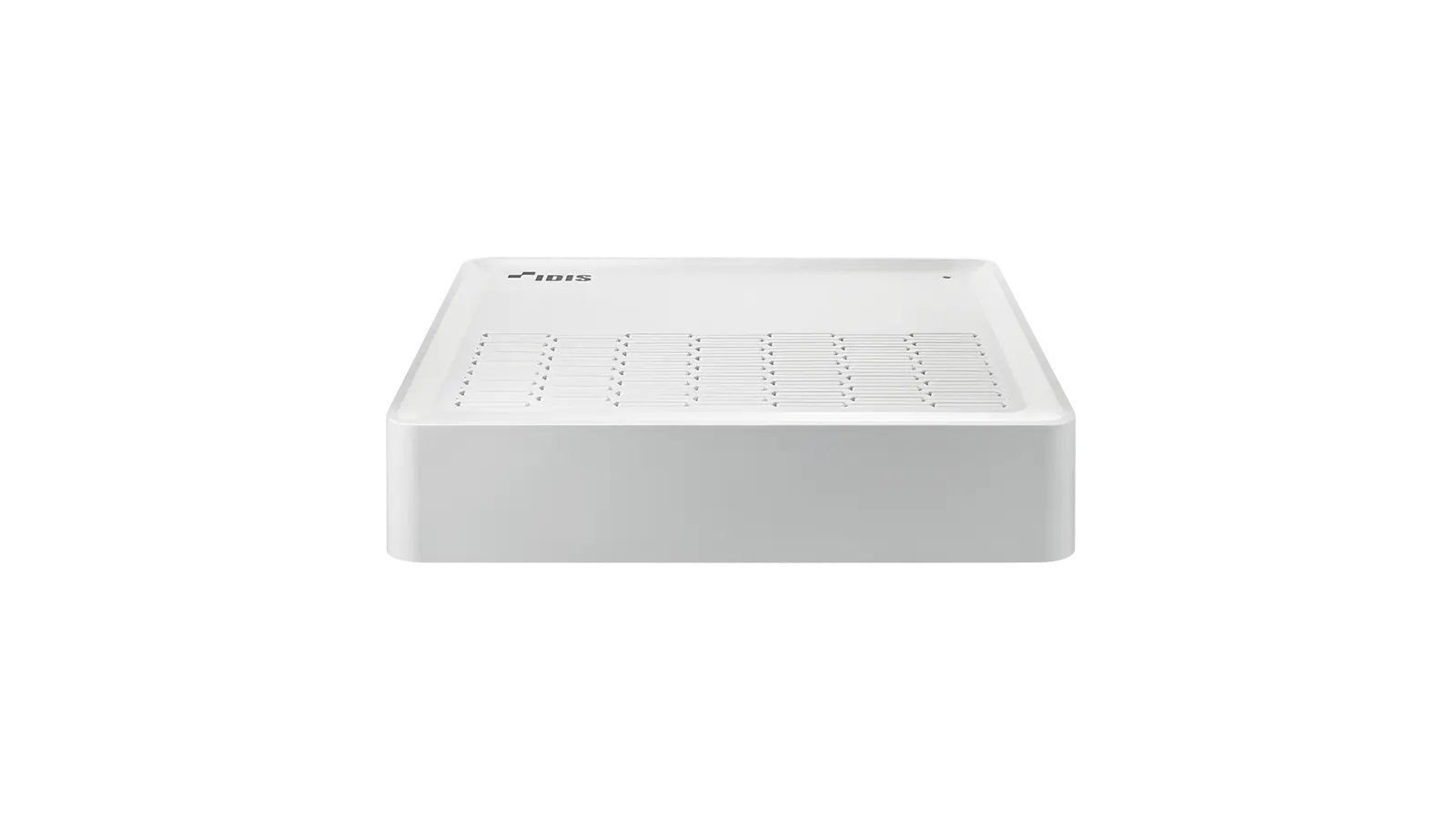

DR-1504P-A
DirectIP 1500 Series Full HD Recorder
תואם NDAA- Total incoming throughput 60Mbps
- Up to 120ips 8MP real-time recording
- Up to 120ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Built-in 4 channel PoE Switch
- Supports one click network configuration through FEN service
מפרט טכני
| וידאו | |
| Video Inputs | 4 IP Channels |
|---|---|
| Max. Incoming Throughput | 60Mbps |
| Supported Camera | DirectIP |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| Recording | |
| Max. Throughput | 20Mbps, 120ips@8MP |
| Recording Resolution | Up to 8MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | Motion, Trip-zone, Tampering, Video Loss, System, Etc. |
| Playback | |
| Performance | 4ch Full HD Synchronous Playback |
| Search Mode | Time-lapse, Event Log |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 1 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| רשת | |
| Client Connection | Fast Ethernet (Client) x1 |
| Video In Connection | Fast Ethernet (IP Camera) x4 |
| Transmission Speed | 20Mbps |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 4 Ports, 35W |
| Event Notification | Email (MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Interface | |
| USB | USB 2.0 x 2 |
| User Interface | Mouse |
| כללי | |
| Operating System | Embedded Linux |
| סביבתי | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Consumption | NVR: 48V , 1A, Max. 48W |
| Approval | KC, CE, FCC |
| מכני | |
| Unit Dimensions (W x H x D) | 205mm x 44.5mm x 216.4mm (8.07" x 1.75" x 8.52") |
| Unit Weight | 1.2kg (2.65 lb) (with 1 HDD) |
קבצים להורדה
[גיליון נתונים] DR-1504P-A Datasheet
הורדה
