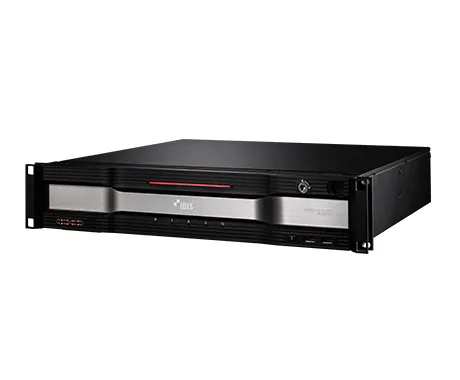

DR-8532
DirectIP 8500 Series H.265 4K Recorder
תואם NDAA- Total incoming throughput 370Mbps
- Up to 960ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 960ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Expandable up to 432TB using eSATA storage
- Supports RAID 1, 5, 6, 10
מפרט טכני
| וידאו | |
| Video Inputs | 32 IP Channels |
|---|---|
| Max. Incoming Throughput | 370Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 960ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 230Mbps, 960ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 32ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 8, eSATA x 4, RAID 1, 5, 6, 10 Supported |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| רשת | |
| Client Connection | Gigabit Ethernet (Client) x 1 |
| Video In Connection | Gigabit Ethernet(Video In) x 3, SFP(Video In ) x 2 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 16 / 4 IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic) |
| כללי | |
| Operating System | Embedded Linux |
| סביבתי | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Consumption | 100-240V~, 50/60Hz, 8.0 - 4.0A, 100W x 2 |
| Approval | FCC, UL, CE, CB, KC, PSE |
| מכני | |
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 529.5mm (19" x 3.5" x 20.8") |
| Unit Weight | 12.6kg (27.8lb) (with 2 HDDs) |
