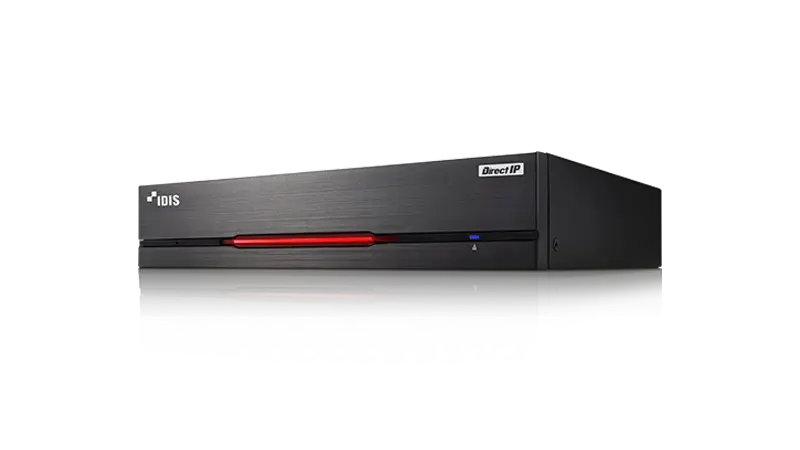

DV-1304-A
4ch AI in the Box
תואם NDAA- Simply connect to a compatible IDIS NVR
- Supports 4ch IP Camera
- Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
- Supports Object Detection
- Supports Intrusion
- Supports Loitering
- Supports Line Crossing
- Supports Face Detection
מפרט טכני
| וידאו | |
| Video Inputs | 4 IP Channels |
|---|---|
| Supported Device | DirectIP NVR (Recording functionality is not included.) |
| VA Support | Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| רשת | |
| Video Compression | H.265, H.264 |
| Network Connection | 100M Ethernet x 1 (100Base-TX) with PD 100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor) |
| סביבתי | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Input | 48V=, PoE |
| Power Consumption | 48V=, 0.8A, 38.4W PoE, IEEE 802.3at(Class 4), 25W DC OUTPUT : 48V=, 0.35A MAX |
| Approval | FCC, CE, KC |
| מכני | |
| Unit Dimensions (W x H x D) | 200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2") |
| Unit Weight | 0.88kg (1.94 lb) |
