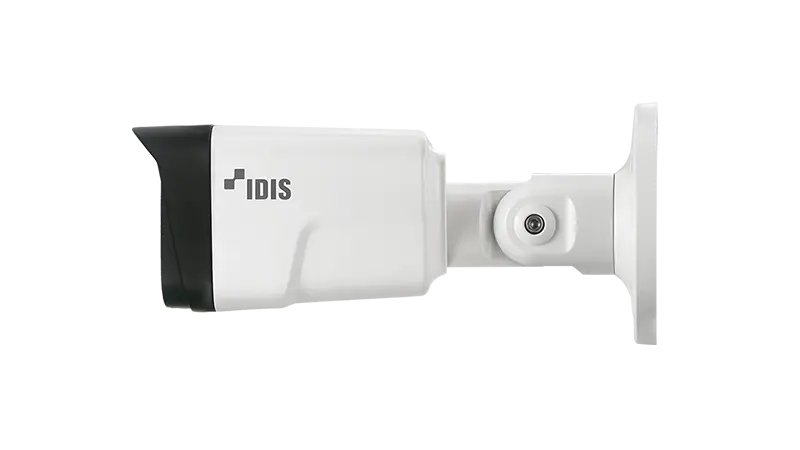

TC-T5511WRX - תמונה 2
TC-T5511WRX - תמונה 3
TC-T5511WRX - תמונה 4

TC-T5511WRX

DirectCX 5MP IR Bullet Camera

תואם NDAA
  • 5MP resolution
  • Fixed-focal Lens (f=6.0mm)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Motion Detection
  • De-fog
  • HLC
  • Vandal Proof / IP66 supports
הורדת גיליון מפרט

מפרט טכני

וידאו
Image Sensor1/2.8" CMOS Sensor
Max. Resolution2592 x 1944
Scanning ModeProgressive Scan
Frame RateTVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
CVBS : NTSC / PAL(for previewing video)
Lens TypeFixed-focal
Focal Length6.0mm
ApertureF1.6
Iris ControlFixed Iris
Angular Field of View49.9º (H) 37º(V) 63.6º(D)
Min. IlluminationCOLOR : 0.11 Lux @ F1.6
B/W : 0 Lux (IR LED ON)
S/N RatioMore than 50dB
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker
Day and NightYes (ICR)
IR Distance (LEDs)20m / 65.6 ft (4ea)
Video Out1 HD BNC (Signal Switchable)
Function
Functions via OSD menu control· AGC : 0 ~ 10 Level Adjustable
· Brightness : 0 ~ 20 Level Adjustable
· Sens-UP : OFF / x2 ~ x32
· WDR(Wide Dynamic Range) :
OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available
· Backlight Compensation(BLC) : OFF/ON
· HLC : 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY)
· ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH
· Motion Detection : OFF/ON (4 Zone)
· Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8
· Day & Night : Color/B&W/EXTERN
· Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable
· White Balance : AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)
· Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH
· Mirror : MIRROR, FLIP
· D-ZOOM(EZOOM) : x1 ~ x16
· Sharpness : 0~10 Level Adjustable
· De-fog : OFF/ON
· GAMMA Correction : r = 0.45 ~ 0.75
· Lens Shading(LSC) : OFF / ON(0 ~ 100% Level Adjustable)
· Language : ENG / CHN / CHN(S) / JPN / KOR
סביבתי
Outdoor ReadyIP66
Operating Temperature-10℃ ~ +55℃ (14℉ ~ +131℉)
Operating Humidity0% ~ 90%
חשמל
Power SourceDC 12V
Power Consumption3.4W
מכני
Dimensions70mm x 65mm x 182.7mm (2.75" x 2.56" x 7.19")
Weight0.24kg (0.53lb)

אביזרים תואמים

סביבה

Corner Mount

Corner mount adapter combination for structure edges and corners.

Corner MountDA-RM2000
סביבה

Pole Mount

Pole mount adapter combination for vertical cylindrical or square poles.

Pole MountDA-LM2000
