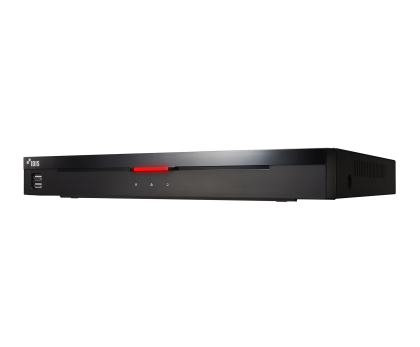

TR-2616
DirectCX 16channel H.265 Hybrid Recorder
תואם NDAA- Supports Multi Standard Analog Camera and IP Camera
- Supports Dedicated Network Port for IP Cameras
- Up to 240ips Full HD recording
- H.265 encoding , Intelligent Codec Support
- Up to 5MP Analog Camera support
- UHD Display with HDMI output
- Supports OSD control over Coax
- Expandable up to 12TB using 2 SATA interfaces
מפרט טכני
| וידאו | |
| Video Inputs | 16 Channels (16 BNC, 1 RJ45 : Up to 8 IP Cameras Switchable) |
|---|---|
| Supported Camera | HD-TVI : 5MP, 4MP, 1080P, 720P AHD : 5MP, 4MP, 1080P, 720P CVBS : NTSC / PAL IP (DirectIP, IDIS) : Up to 12MP(Depending on IP Camera) |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| Recording | |
| Recording Resolution | 1280x1920, 1280x1440, 1920x1080, 1280x720, 720x576, 720x480, 640x360, 720x288, 720x240, 360x288, 360x240 |
| Video Compression | Analog : H.265, Intelligent Codec IP : H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Motion, Tampering, Video Loss, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| רשת | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 50Mbps |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W,Push (IDIS Mobile), FTP, HTTP |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 8 / 1 |
| Serial Interface | RS232 / RS485(Terminal Block) |
| USB | USB 2.0 x 2(Front x 2) |
| User Interface | Mouse, Network Remote Keyboard |
| כללי | |
| Operating System | Embedded Linux |
| סביבתי | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| חשמל | |
| Power Input | Adaptor Input : 100-240V AC, 50/60Hz, 1.5A Output : 12V DC, 5A |
| Power Consumption | 12V=, 2.79A, 33.48W |
| Approval | FCC, CE, KC |
| מכני | |
| Unit Dimensions (W x H x D) | 340mm x 44mm x 302.3mm (13.4" x 1.7" x 11.9") |
| Unit Weight | 3.3kg [7.27lb] (with 2 HDD) |
